Product Details
＋
APPLICATIONS:
For sewing heavy to extra heavy weight materials such as suedes, leather, vinyl, synthetics, laminated and coated products.
Also suitable for sewing such products as cargo handling belts, containers, saddles, covers, sails, tents, camping trailer covers, awnings, hand bags, etc.
FEATURES:

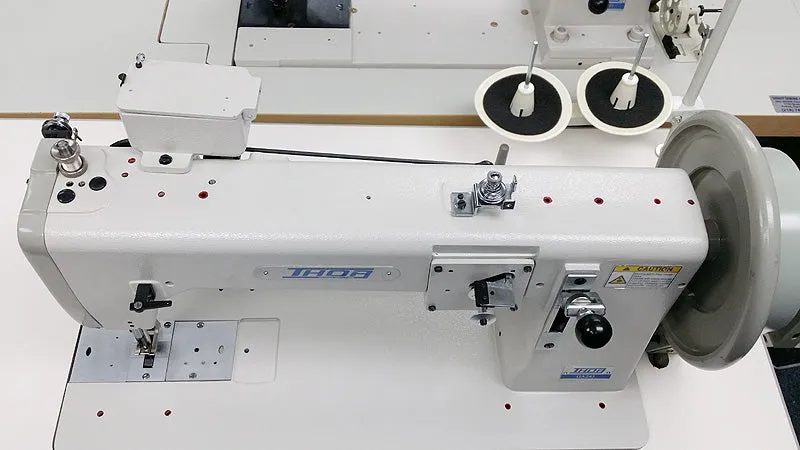

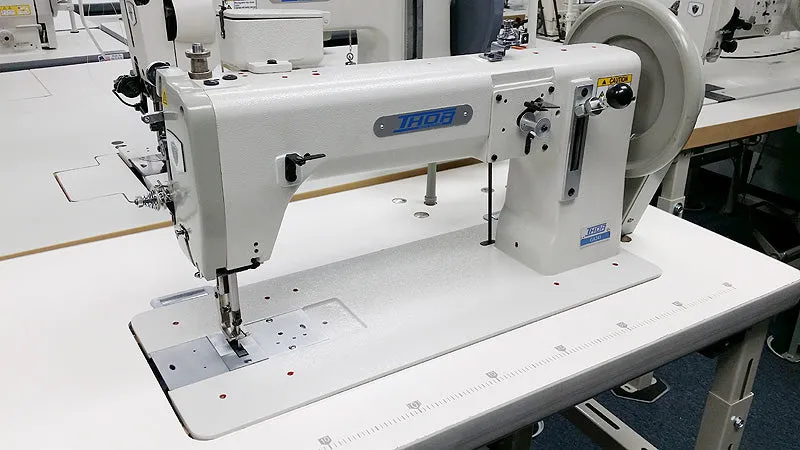

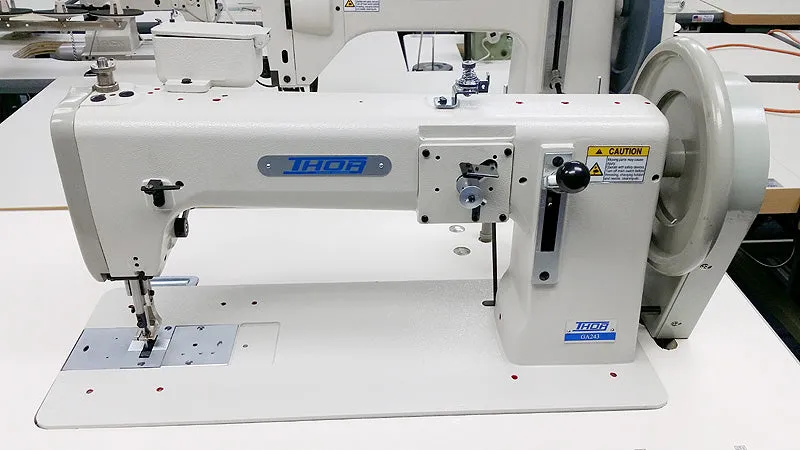

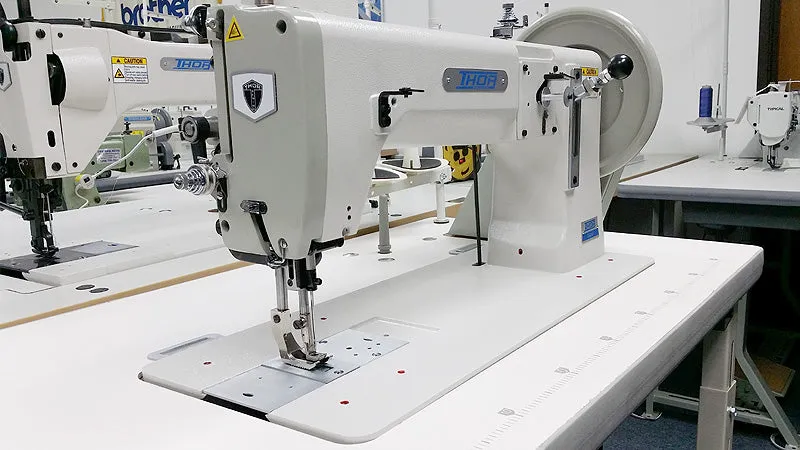

The 243 comes with a large area under the arm of 420mm. This allows the operator to
handle large materials with ease.

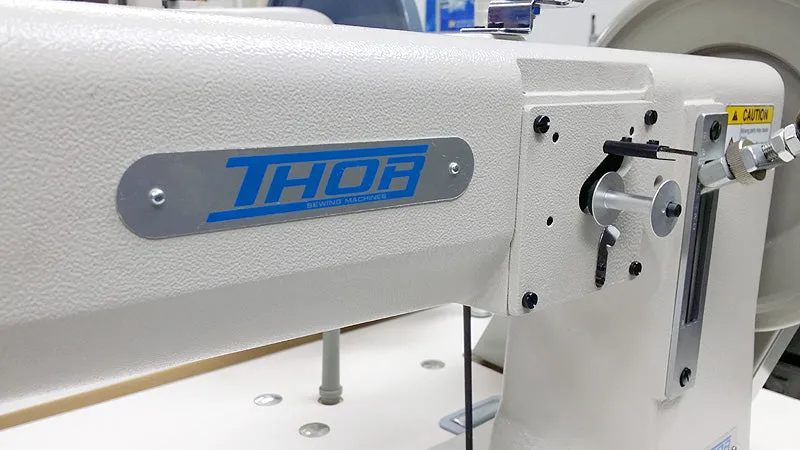

The 243s’ front mounted bobbin winder and extra large bobbin allows for easy access and
fewer bobbin windings in order to increase production.

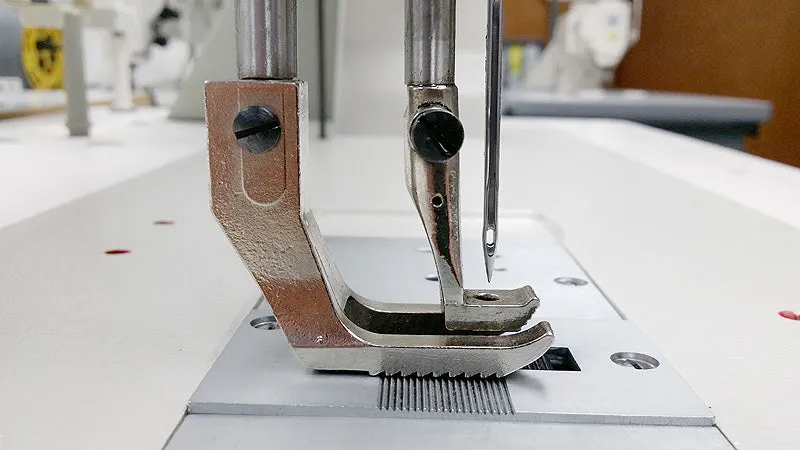

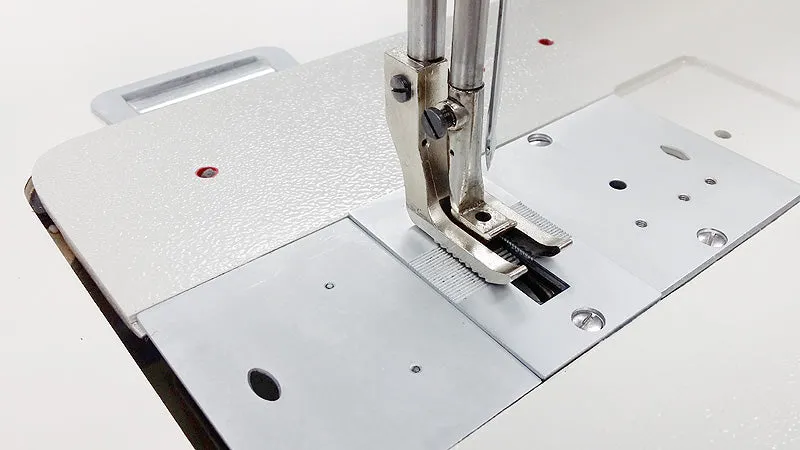

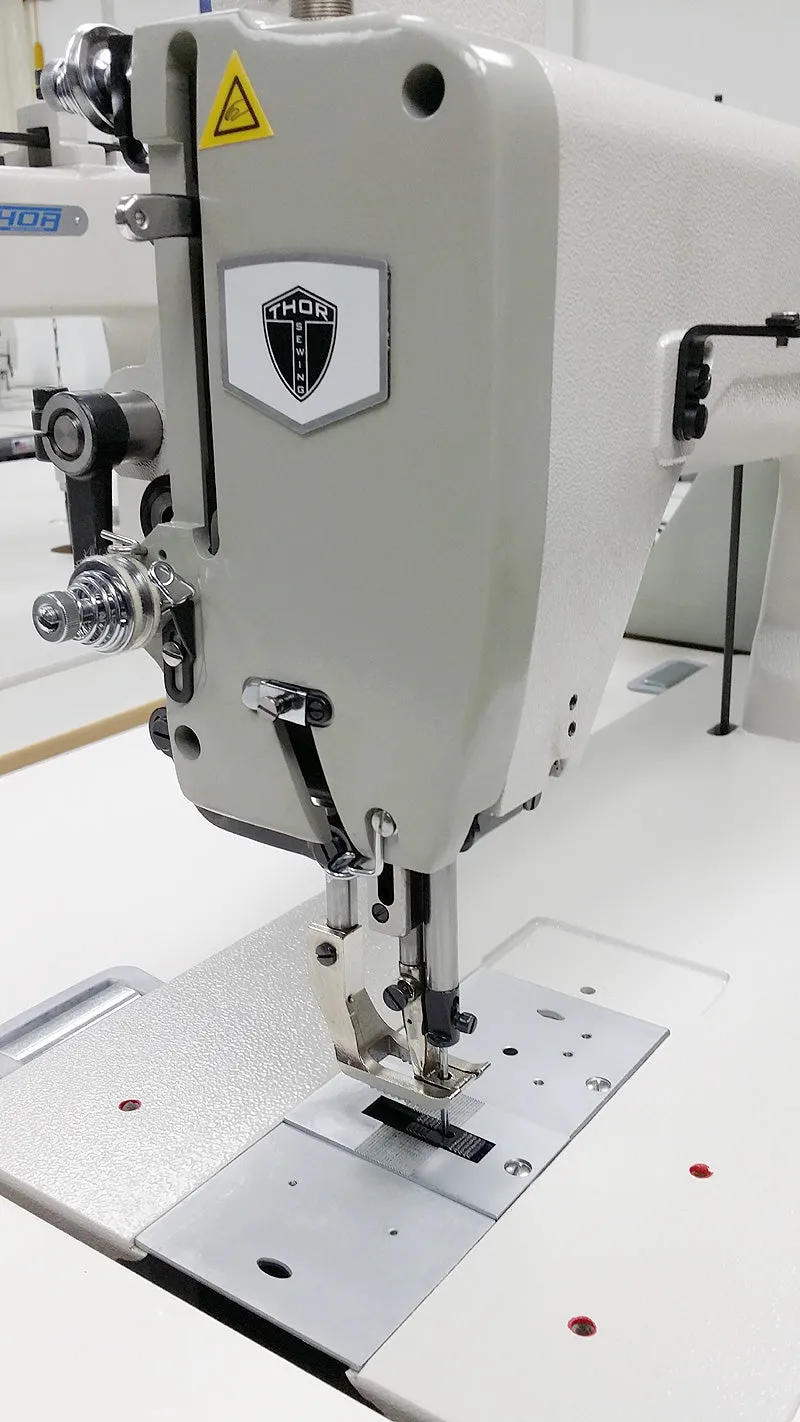

The high 20mm (7/8") presser foot lift enables easy material handling for extra heavy materials.

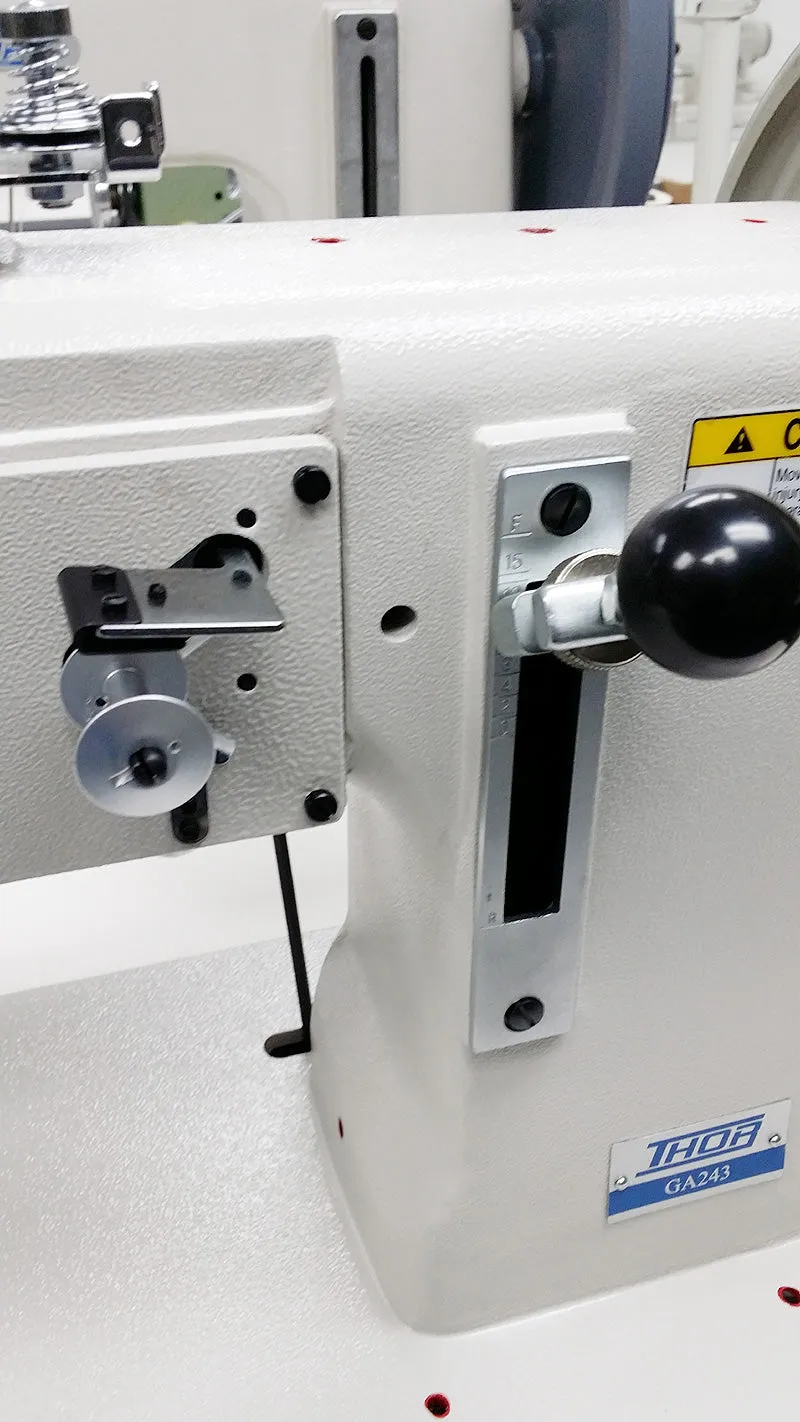

The reverse stitch and stitch length adjustment are easily accessible on the same lever.
This allows for quick and easy adjustments with visual and physical feedback.

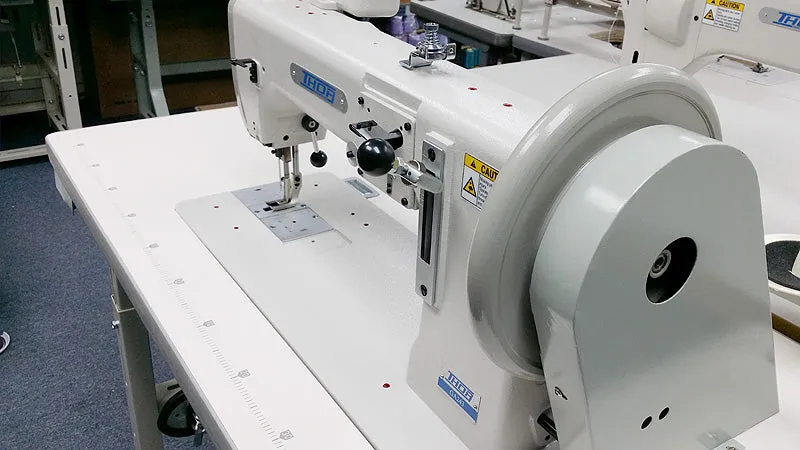

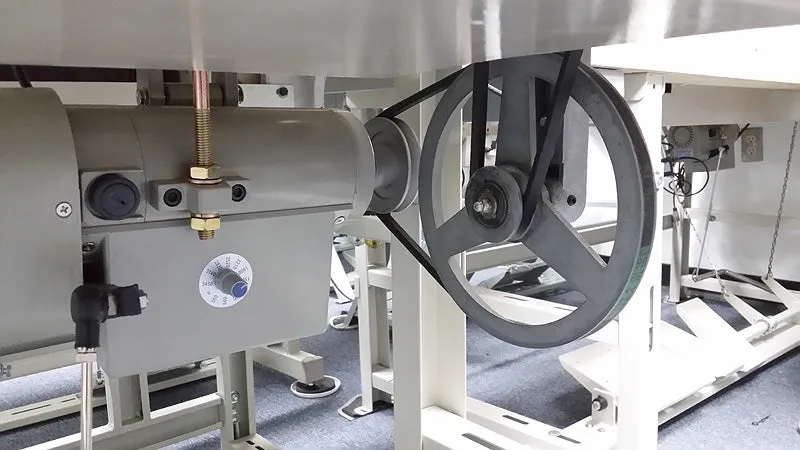

*** INCLUDES HEAVY DUTY BALL BEARING SPEED REDUCER - INSTALLED ***
TECHNICAL SPECS:
- APPLICATION: For Heavy to EXTRA HEAVY Materials
- MAX SEWING SPEED: 800 SPM
- MAX STITCH LENGTH: 15mm (0.6") Forward/Reverse
- NEEDLE BAR STROKE: 56mm (2.2")
- FOOT LIFT: 20mm (3/4") by Knee, 12mm (1/2") by Hand
- HOOK: Oscilating Large Shuttle Hook
- NEEDLE: DYx3
- THREAD: TEX 135 to TEX 415

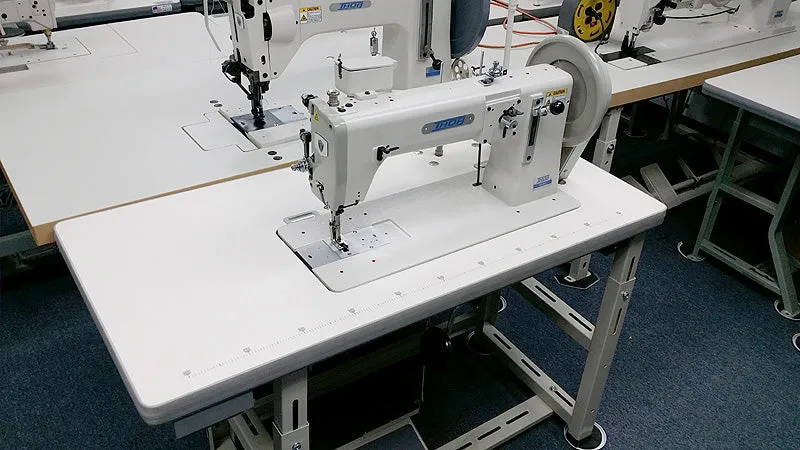

MACHINE SETUP:
This machine ships complete and fully assembled - ready to sew upon arrival.
It includes:
- Machine Head
- Table Top
- Heavy Duty Stand
- SERVO Motor
- Speed Reducer (Optional)
- LED Light
- Manuals
- Extra needles, bobbins, and tools.
MOTOR & VOLTAGE:
This machine is equiped with a SERVO motor operating on standard 110 Volts power.
WARRANTY:
1 Year Warranty
